One of the factors in terms of the reception range of LoRaWAN gateways is of course the installation location. As part of the first tests with the new ZENNER IoT GatewayPLUS Smart (available in the ZENNER shop since Easter) in the MZC network, I did a few range tests.
Positioning in the ground floor living room wall socket. Outside wall sand-lime brick about 25 CM, outside insulation and plaster. backhaul WLAN GW to the receiver 3-4 meters unimpeded radio propagation in the room possible

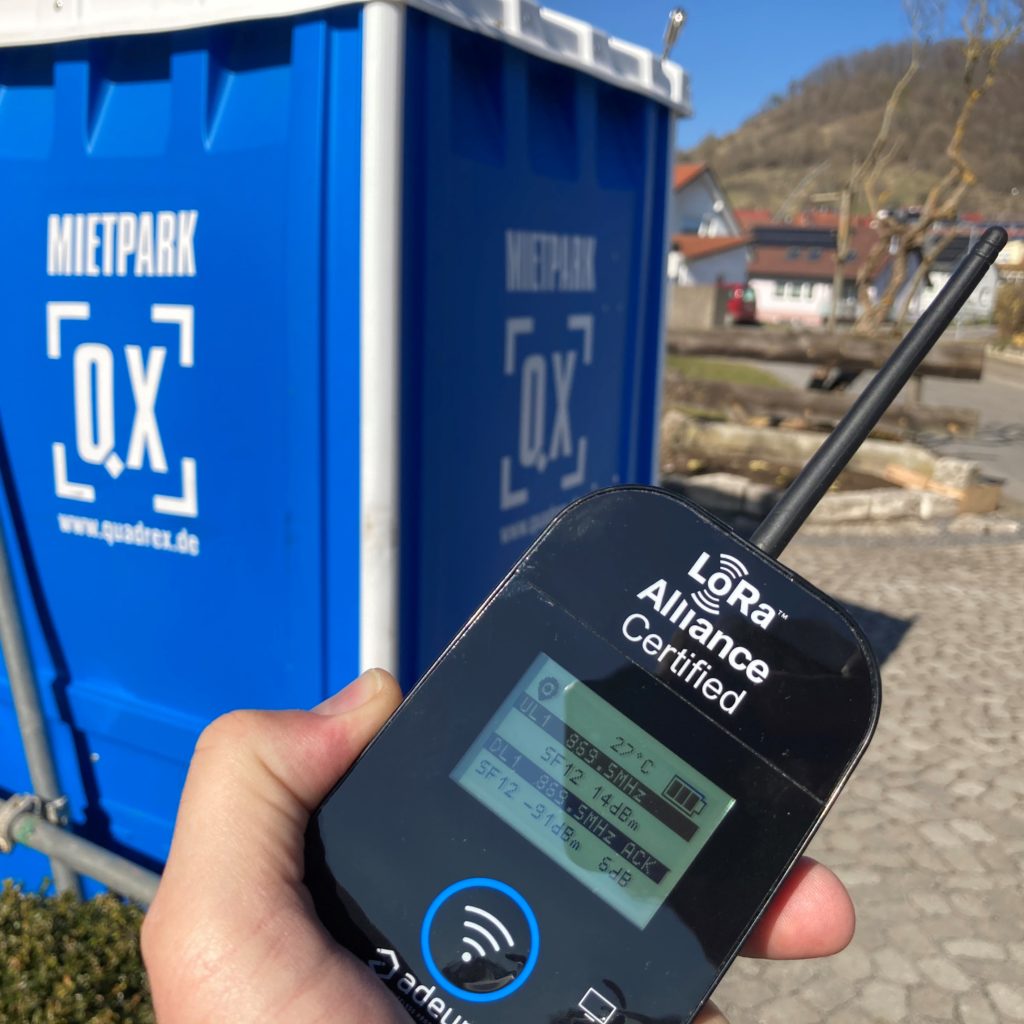

Image1) ToiToi Distance about 150 meters. Line of sight yellow house at antenna tip -97dBm (the bigger the better!) 7dB. vs GW in the roof -91dBm 6dB Image 2) Dog bag station about 650 No line of sight! -127dBM -3dB vs GW in the roof -113 dBm 3dB Picture 3) garden hut about 900 direct distance but behind the hilltop. NO reception, no line of sight vs vs GW in the roof RECEPTION! -115 -14dB Picture 4) Tractor hall approx. 800m No line of sight! -121dBm -8dB vs roof measurement 2nd measurement -104dBM 5dB
NEW positioning attic. Roof insulation, wooden panels, insulating wool, bricks, photovoltaic modules. Lightweight wall to the east 10 cm, as well as sand-lime brick exterior wall approx. 25 CM, exterior insulation and plaster backhaul via WLAN devolo Magic to WLAN via devolo Powerline . WLAN connection shielded by wooden folding stair covers.
The most amazing PICTURE 5-7 with the GW in the roof even reception behind the group of hills! The place is behind the hill from picture 5 house about 900 meters away as the crow flies. Reception even between the individual shed buildings.
